Diameter Range (mm): round:3.0-8.0mm
flat:a:1-6 mm b:3-20mm
Conductor: Aluminum Wire

Conductor diameter: 1.20~8.00mm

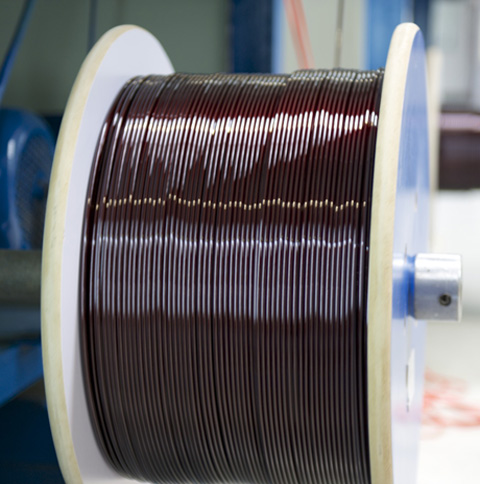

155 grade polyester enameled round aluminum wire
180 grade polyesterimide / polyamide enameled round aluminum wire
200 grade modified polyesterimide enameled round aluminum wire
200 grade polyamideimide enameled round aluminum wire
220 grade polyesterimide enameled round aluminum wire

Diameter Range (mm): round:3.0-8.0mm flat:a:0.9-10mm b:3-20mm

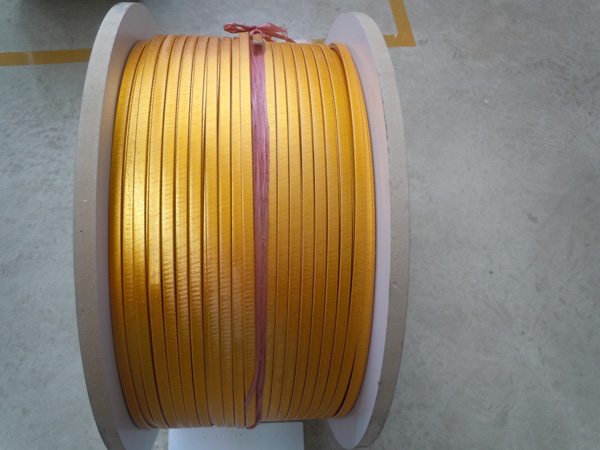

Insulation Material: Kraft electrica paper / Nomex paper /3M/DM. etc

Size: a(b):2mm-25mm
Mainly used in reactor，toroidal coils

Size :a(b): 3.0-6.0 mm

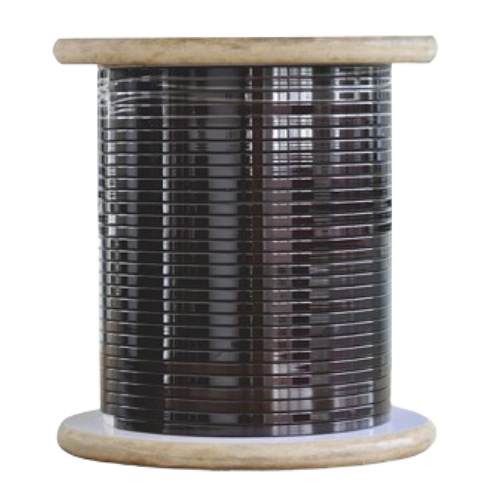

Class 180 Polyesterimide/Polyamide Enameled Square Aluminum Wire

Class 200 Modified Polyester Enameled Square Aluminum Wire

Class 220 Polyesterimide Enameled Square Aluminum Wire

Size:0.8~10.0mm;  Width(b): 2.0-25mm

Enamels of Enameled Aluminum Flat Wire :
a)Polyurethane:Very good solderability and high thermal properties
b)Polyesterimide: Solderable at high temperatures, high thermal properties and good chemical resistance.
c)Polyamidimide: Very high thermal properties and good chemical resistance.
d)Polyimide: Excellent thermal properties, excellent chemical and high radiation resistance.

Diameter Range (mm): round:3.0-8.0mm flat:a:1-10mm b:3-20mm
Insulation Material: Fiber glass, fiber glass+varnish, fiber glass+polyester film, fiber glass+polyimide film,
